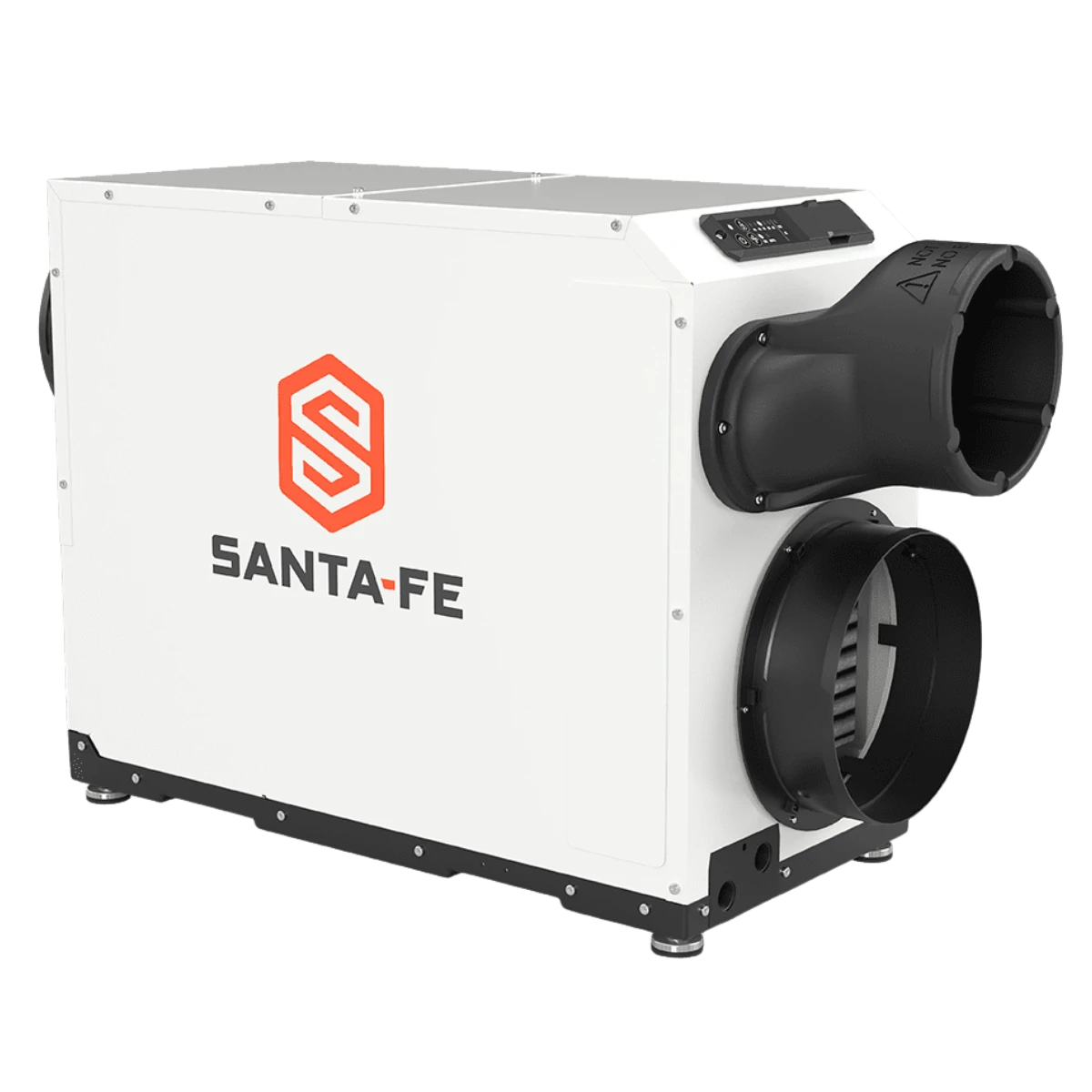

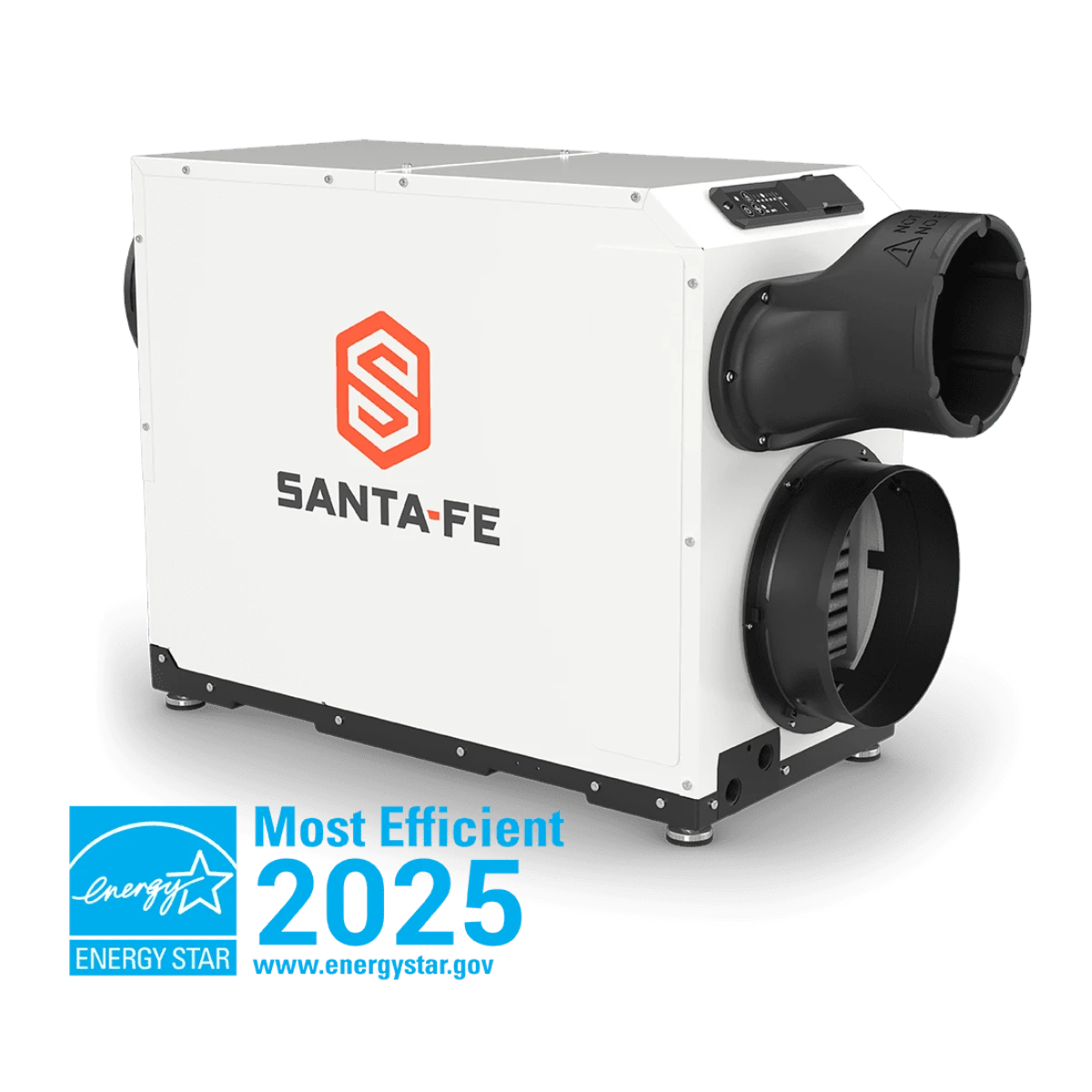

Santa Fe Ultra155 Whole House Ventilating Dehumidifier

Description

Designed for whole-home moisture control, the Santa Fe Ultra155 efficiently removes up to 155 pints of moisture per day—perfect for larger homes up to 3,500 square feet. Previously known as the Ultra Aire XT155H, this model offers versatile ducting options and can be configured to provide fresh air ventilation throughout your home.

Power Meets Performance

Proudly engineered and assembled in the USA, the XT155H is a powerhouse in efficiency. This 155-pint dehumidifier delivers top-tier moisture removal with an impressive Energy Factor of 3.4 liters per kWh—all while drawing a maximum of just eight amps. Designed to outperform similar-sized units, it consumes 15% less energy thanks to an advanced refrigeration coil, high-efficiency compressor, and optimized fan system. By pre-cooling incoming air, the XT155H reduces the energy needed for dehumidification, making it one of the most efficient models in its class.

Upgraded 6-Year Warranty

Santa Fe dehumidifiers now have an upgraded warranty that guarantees performance and customer satisfaction for up to six years. This industry-leading “Peace of Mind” warranty covers all Santa Fe dehumidifiers manufactured after January 1, 2024, with a 5-year warranty against operational failures and a 6-year warranty for faulty components. In the unlikely event of a unit breakdown, Santa Fe will replace or repair the affected unit. However, customers should consult their Owner’s Manual for detailed information about their warranty’s terms and conditions.

Tailor the System to Your Home

Designed for seamless integration with your home's ductwork, this system provides whole-home humidity control. Popular installation locations include basements, attics, closets, and mechanical rooms, ensuring flexible placement options. To further customize your setup, a range of ducting accessories is available. The system includes:

• 10-inch oval outlet

• 10-inch round outlet

• 6-inch round inlet

Additional Features

• Enhanced Air Filtration: Equipped with a MERV 13 filter to trap allergens and airborne particles while keeping the unit running efficiently. Need a replacement? Get a MERV 13 filter here. For slightly lower filtration, a MERV 11 option is also available.

• Optional MERV-14 Upgrade: Upgrade to a MERV 14 filter for even better air quality—removing 90-95% of particles as small as 0.3 microns.

• Cold-Weather Performance: Designed to operate in temperatures as low as 49°F, with an automatic defrost function that prevents frost buildup and ensures smooth operation in chilly conditions.

• Extended Reach: A 10-foot power cord offers greater flexibility when choosing an installation spot.

• Customizable Drainage: For added convenience, an external condensate pump can be attached to direct water to a drain—even across long distances or upward.

• Proudly American-Made: Like all Ultra Series models, this unit is designed and assembled in the USA and backed by a 6-year parts warranty.

Remote Humidity Control Options

You must purchase a remote dehumidistat controller to operate this unit. Therma-Stor has a few options available. All the control units below are wired directly to the Santa Fe unit using 24-volt pigtail wiring.

• DEH 3000 Digital Controller: The DEH 3000 is an all-digital controller that allows you to monitor and control humidity, manage fresh air ventilation, and activate air filtration for the unit from your living space. This control allows you to run the fan continuously instead of only when the unit is in dehumidifying mode.

• DEH3000R Digital Controller: The DEH 3000R is similar to the DEH 3000 but also features a remote sensor that can be placed up to 100 feet away from the controller. This sensor lets you control and monitor humidity conditions separately and keeps the wall-mounted controller out of sight.

Specifications

Residential Use

• Coverage Area: Whole House (Up to 3,500 sq. ft.)

• Pint Capacity: 155 pints

• Internal Condensate Pump: No

• Auto-Restart: Yes

• Energy Star Certified: No

General

• Commercial/Industrial Use: Suitable for Restaurants

• Casters: No

• Water Container: No

• Water Container Capacity: N/A

• Full Bucket Indicator/Auto Shutoff: Yes

• Continuous Drain Capable: Yes

• Drain Hose Included: No

• Drain Hose Length: N/A

• Drain Hose Diameter: 0.75 in.

• Controls: Manual

• Humidistat: No

• Low Temperature Operation (≤ 41°F): No

• Automatic Defrost: Yes

• Fan Operation: Runs Only When Dehumidifying

• Fan Speeds: 1

• Maximum Airflow: 391 CFM

• Maximum Noise Level: 57.3 dB

• Number of Filters: 1

• Filter Type: MERV-13

• Ductable: Yes

• Refrigerant Type: R-410A

• Certifications: CSA, UL

• Lowest Operating Temperature: 49°F

• ENERGY STAR® Most Efficient: No

• Wi-Fi Capable: No

• Desiccant Technology: No

• Low Grain Refrigerant (LGR): No

• Color: White

• California Residents Compliance: N/A

Power

• Wiring Style: Plug

• Maximum Amperage: 8 Amps

• Maximum Wattage: 920 W

• Voltage: 110-120 V

• Power Cord Length: 10 ft.

Dimensions & Weight

• Height: 21.75 in.

• Width: 38 in.

• Depth: 20.25 in.

• Weight: 140 lbs.

Warranty

• Manufacturer’s Warranty:

  • 5-Year Complete Warranty

  • 6-Year Component Warranty
