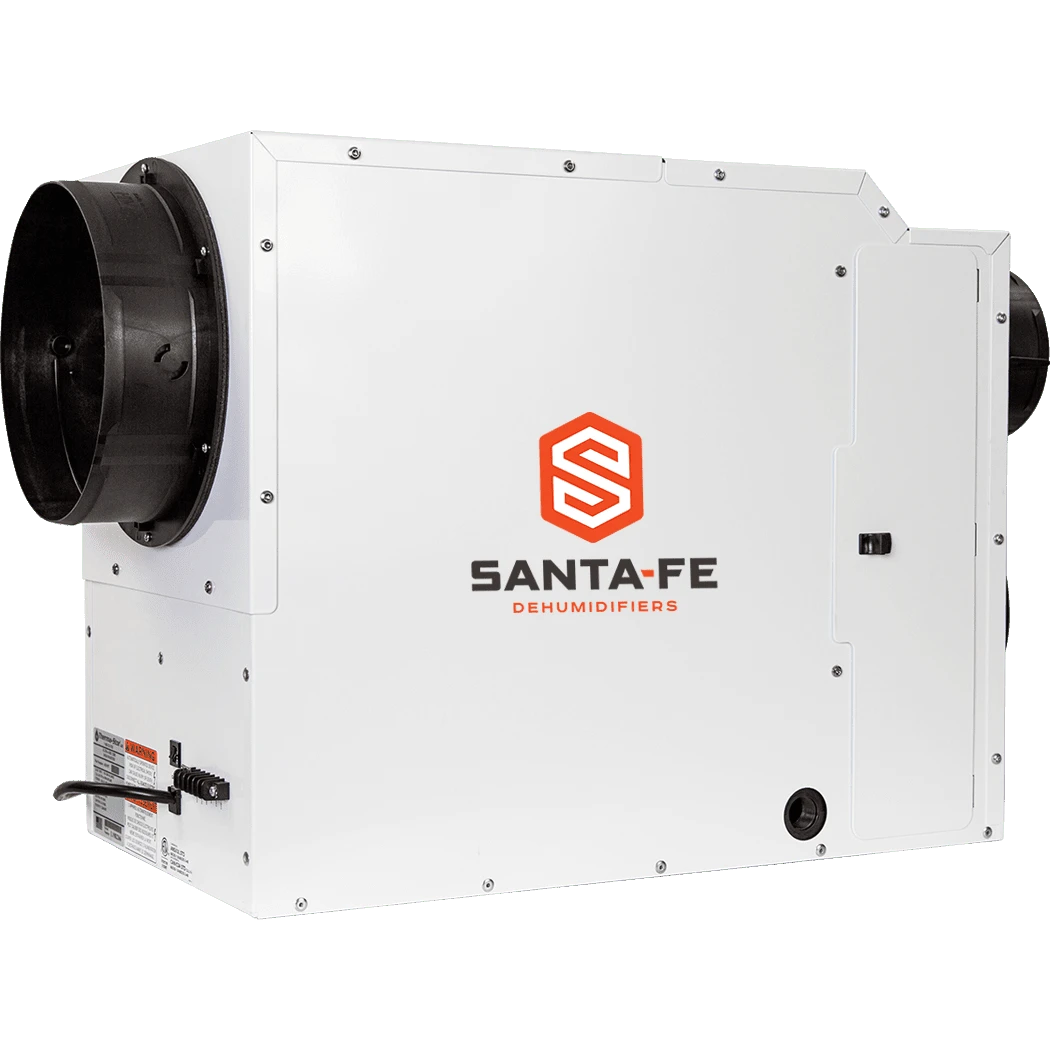

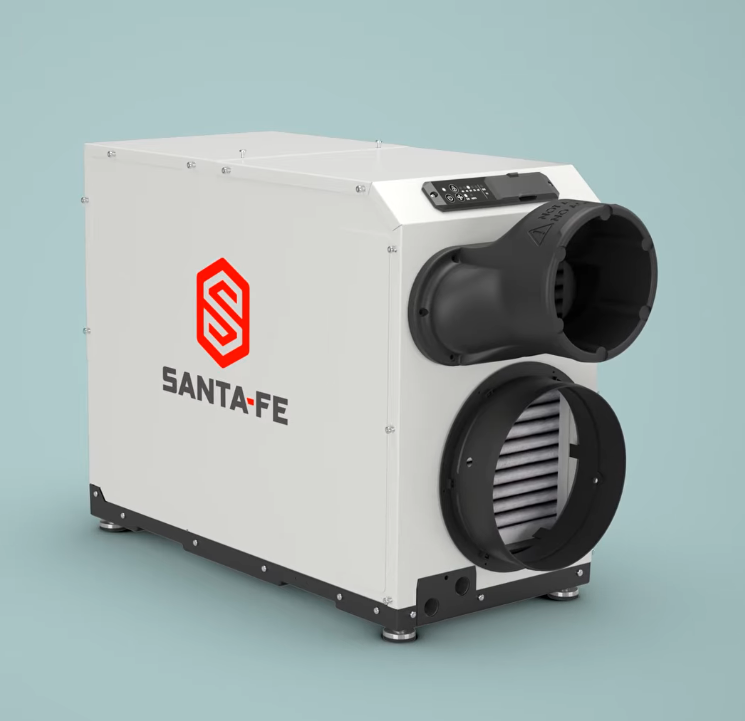

Santa Fe Ultra120 Whole House Ventilating Dehumidifier

Description

For reliable, year-round humidity control in homes up to 3,000 square feet, the Santa Fe Ultra120 is a compact, American-engineered whole-house dehumidifier designed for seamless integration into your HVAC system. Whether installed in an attic or basement, this high-performance unit can be ducted easily and adjusted from a wall-mounted control for effortless operation.

Why Choose the Santa Fe Ultra120?

Built for efficiency, this dehumidifier helps homeowners save on energy costs thanks to its smart design and high-quality components. Manufactured in Madison, WI, and backed by a 6-year warranty, it’s built for long-term durability and dependable performance. Under AHAM testing conditions (80°F, 60% RH), it removes 121 pints of moisture per day while maintaining an impressive energy efficiency rating of 6.1 pints per kilowatt-hour. Designed for flexible installation, the cabinet can be adjusted for either vertical or horizontal airflow, making it ideal for homes with limited space.

Perfect for Medium-Sized Homes

Santa Fe is known for producing industry-leading whole-house dehumidifiers, and the Ultra120 is perfectly suited for many of today’s newly constructed homes, especially in humid regions like Florida and Georgia. With nearly half of modern homes being built between 1,800 and 3,000 square feet, this model provides the ideal balance of power and efficiency to keep indoor air comfortable and moisture-free.

Enhanced 6-Year Warranty for Added Peace of Mind

Santa Fe now offers an upgraded warranty to ensure long-term reliability and customer satisfaction. All dehumidifiers manufactured after January 1, 2024, are backed by an industry-leading warranty—providing five years of coverage for operational failures and six years for defective components. Should an issue arise, Santa Fe will repair or replace the unit as needed. For full details on coverage and terms, refer to the Owner’s Manual.

Flexible Installation for Any Space

Designed for versatility, this dehumidifier integrates seamlessly into your home’s ductwork, offering whole-house humidity control. It’s an excellent choice for attics, basements, and closets in medium-sized homes. With its adaptable horizontal and vertical airflow design, the unit can be configured to direct air either out the top or the side—making it ideal for tight or unconventional installation spaces. Please note: Professional installation is required for optimal performance.

Easy Settings Changes

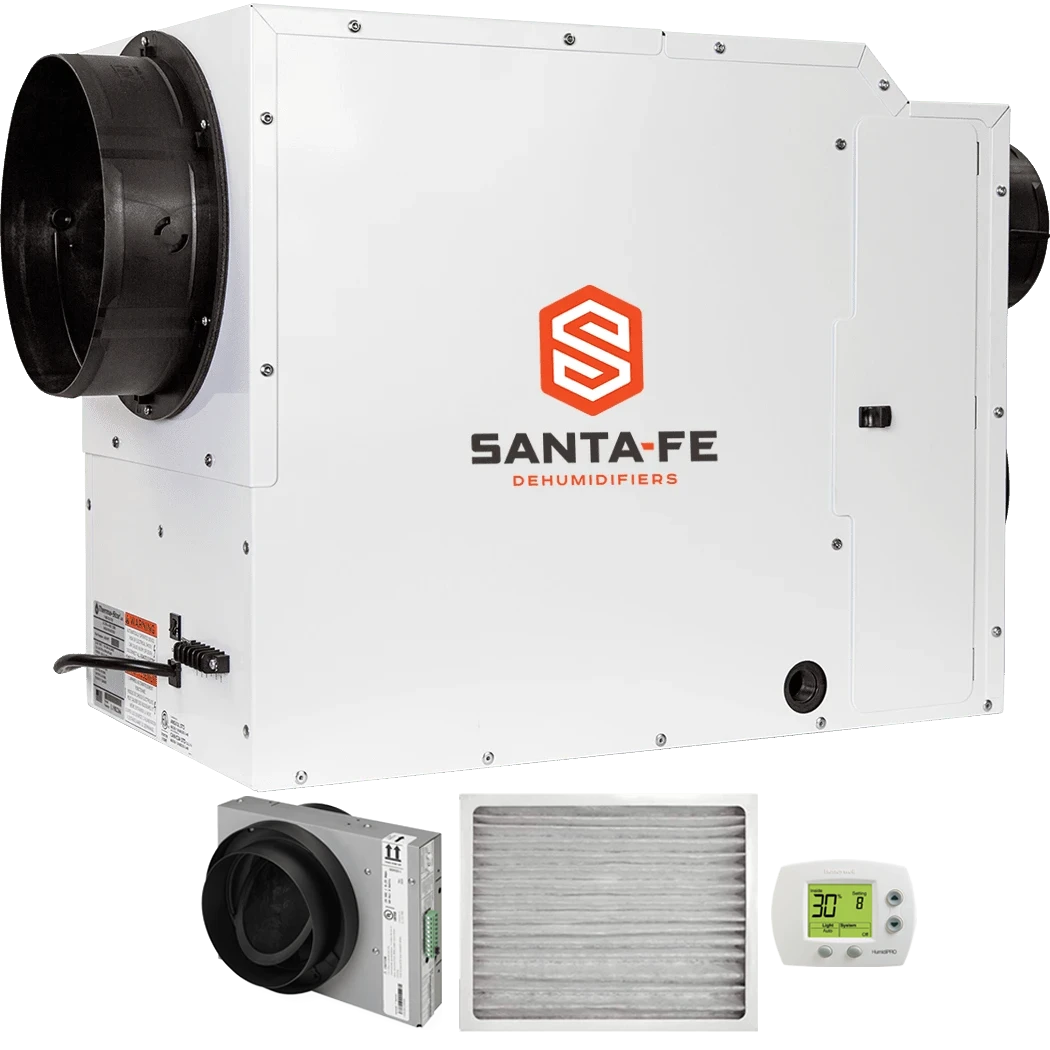

Controlling your indoor air quality with the 120H requires one of these digital controllers:

• DEH 3000 Digital Controller: The DEH 3000 is an all-digital controller that allows you to monitor and control humidity, manage fresh air ventilation, and activate air filtration for the unit from your living space. This control allows you to run the fan continuously instead of only when the unit is in dehumidifying mode.

• DEH3000R Digital Controller: The DEH 3000R is similar to the DEH 3000 but also features a remote sensor that can be placed up to 100 feet away from the controller. This sensor lets you control and monitor humidity conditions separately and keep the wall-mounted controller out of sight.

Dimensions

• With Collars: 32.19"L x 14.38"W x 21"H

• Without Collars: 25.8"L x 14.38"W x 21"H

Additional Factors

• Large Operating Range: From 49 to 95 degrees F (inlet air temperature) or 34 to 135 degrees F (outside cabinet temperature).

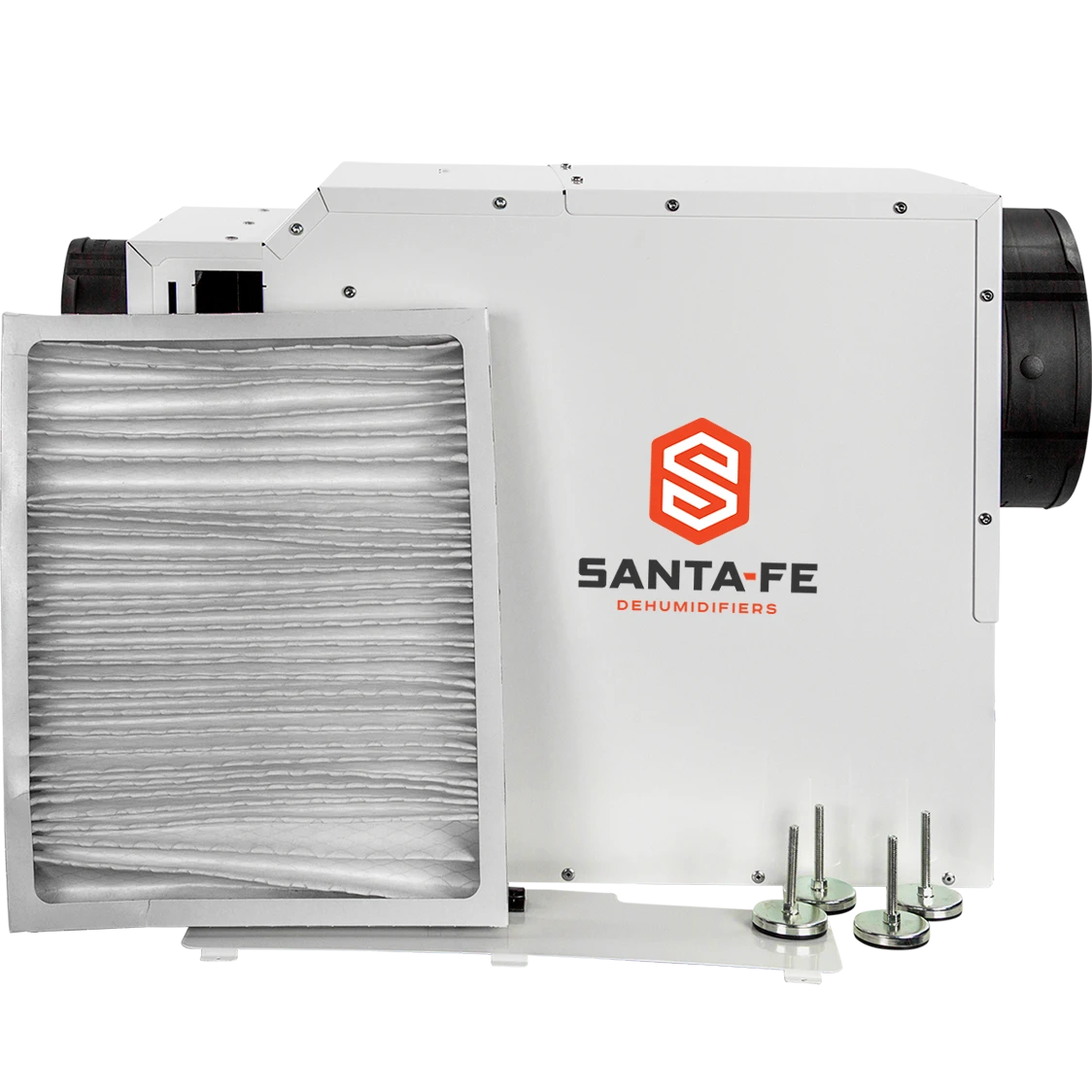

• Superior Air Filtration: The MERV 13 filter removes all household impurities from your air as it moves through the unit. The magnetic access doors on both sides make replacing it simple with any installation. You can upgrade to the MERV 14 filter for even better filtration or use the MERV 11 option.

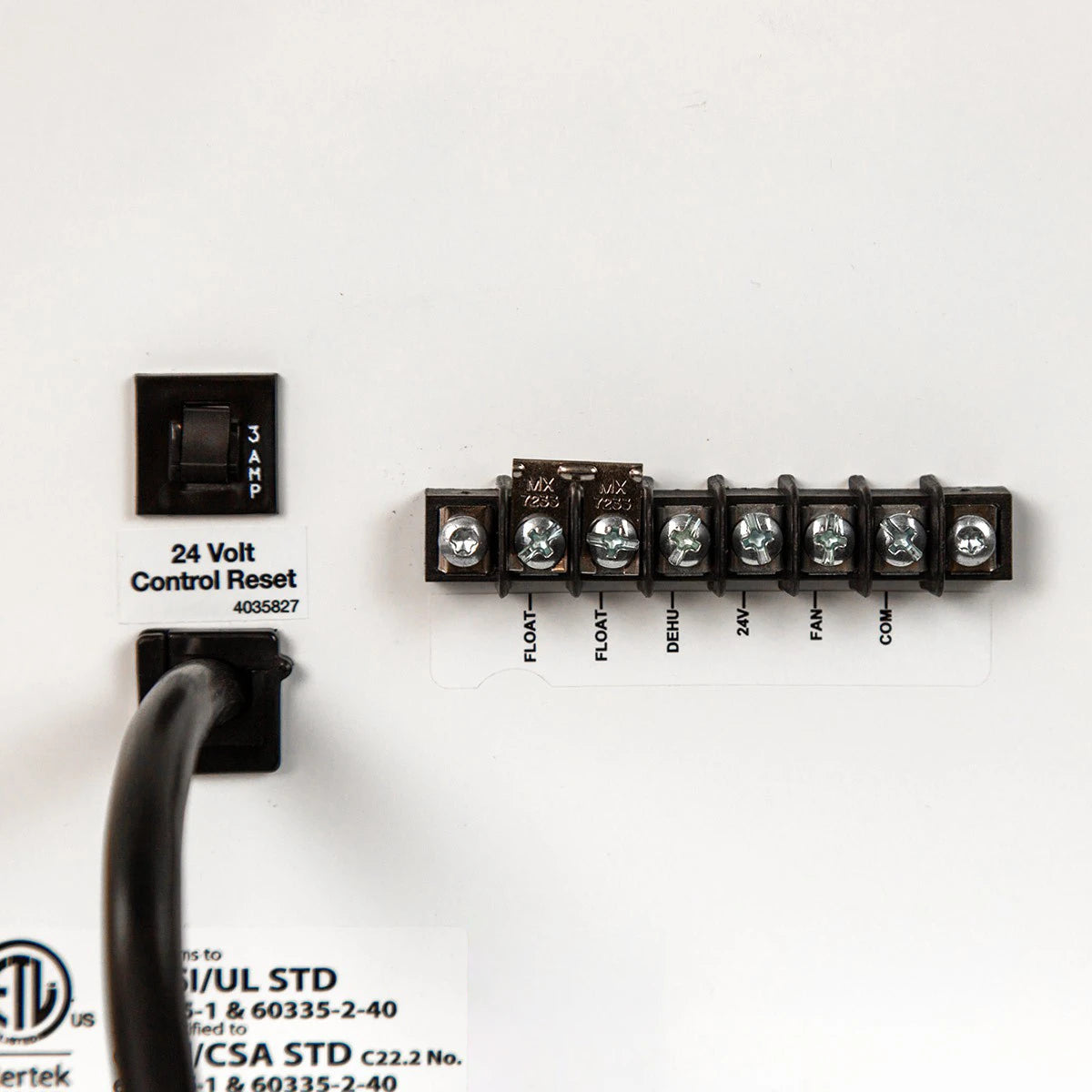

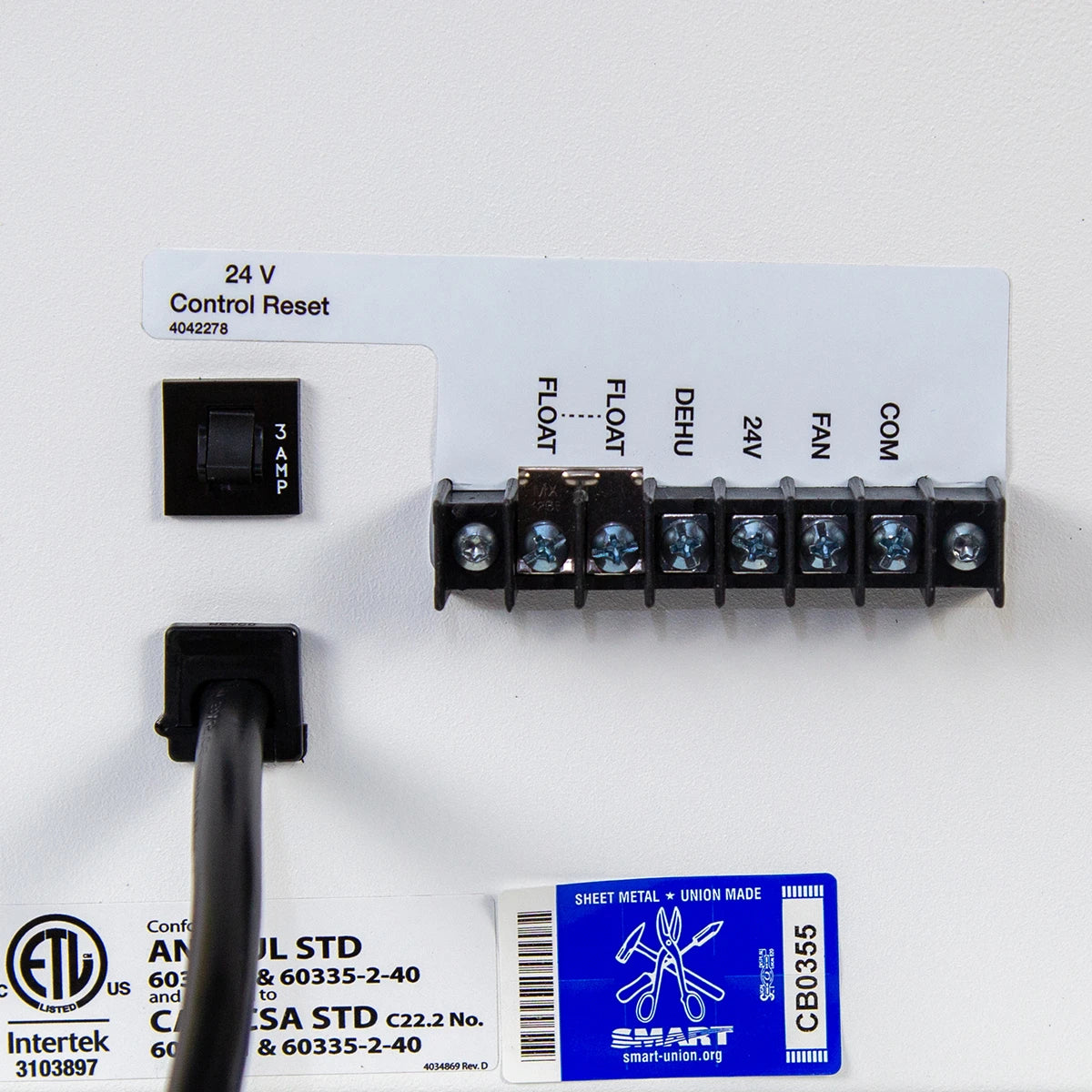

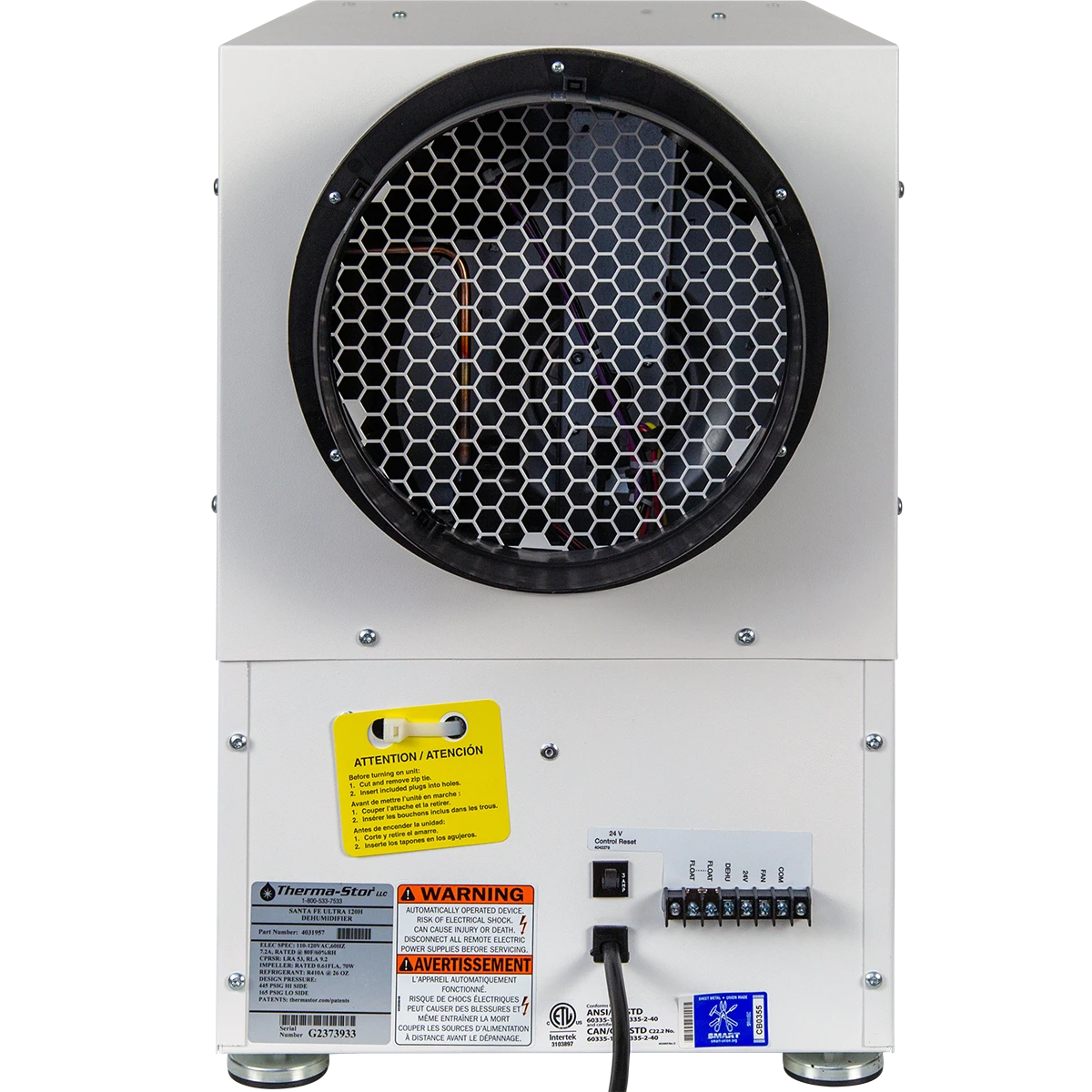

• Transformer Protection: It includes a 24-volt transformer reset and terminal block for an even control connection.

• Highly Efficient: It pulls just 7.3 amps and has an Energy Factor of 2.9 L/kWh while removing up to 120 pints of moisture daily.

• Power Cord: A long, 9-foot power cord should be connected to a grounded 115-volt outlet.

• Quiet Operation: The unit is exceptionally well insulated and compact for the ultimate quiet operation.

• Professional Installation Required: For the best results and to ensure proper operation, these dehumidifiers should only be installed by a professionally qualified contractor. If you're considering adding accessories for a custom setup, it's a good idea to consult with your contractor beforehand to ensure compatibility and optimal performance.

Specifications

Residential Use

• Coverage Area: Whole House

• Manufacturer-Suggested Room Size: 3,000 sq. ft.

• Sylvane’s Suggested Room Size: 3,000 sq. ft.

• Pint Capacity: 121 pints

• Internal Condensate Pump: No

• Auto-Restart: Yes

• Energy Star Certified: No

General Features

• Commercial/Industrial Applications: Gyms, Fitness Centers, Indoor Pools/Spas

• Water Container: No

• Casters: No

• Water Container Capacity: N/A

• Full Bucket Indicator & Auto Shutoff: Yes

• Continuous Drain Capability: Yes

• Drain Hose Included: No

• Drain Hose Specs: 0.75-inch diameter (Length: N/A)

• Controls: Manual

• Humidistat: No

• Low Temperature Operation (Below 41°F): No

• Automatic Defrost: Yes

• Fan Operation: Continuous or Only When Dehumidifying

• Number of Fan Speeds: 1

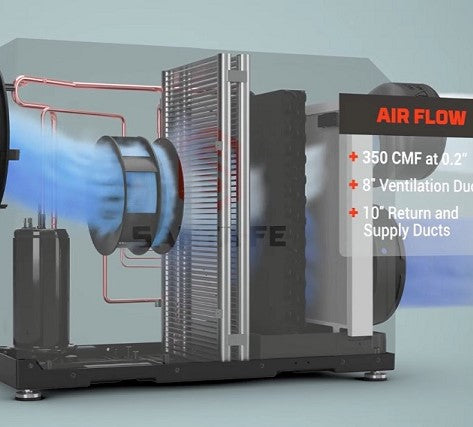

• Maximum Airflow: 350 CFM

• Noise Level: 48 dB

• Filter Type: MERV 13

• Number of Filters: 1

• Ductable: Yes

• Refrigerant Type: R-410A

• Certifications: ETL

Temperature & Efficiency

• Operating Temperature Range:

  • Outside Cabinet: 34°F – 135°F

  • Inlet Air Temperature: 49°F – 95°F

• ENERGY STAR® Most Efficient: No

• Wi-Fi Capable: No

• Desiccant Technology: No

• Low Grain Refrigerant (LGR): No

Design & Build

• Color: White

• California Residents Compliance: N/A

Power & Electrical

• Wiring Style: Plug

• Maximum Amperage: 7.3 Amps

• Maximum Wattage: 840 W

• Voltage: 110-120 V

• Power Cord Length: 9 ft.

Dimensions & Weight

• Height: 21 in.

• Width: 14.375 in.

• Depth: 25.8 in.

• Weight: 90 lbs.

Warranty

• Manufacturer’s Warranty:

  • 5-Year Complete Warranty

  • 6-Year Component Warranty
